Deploying Azure VM using Terraform

Overview:

  • Deploying Azure VM using Terraform
  • Adding Load balancer - Frontend IP,  backend pool, backend IP address
  • Adding monitoring using cAdvisor, Prometheus, Grafana

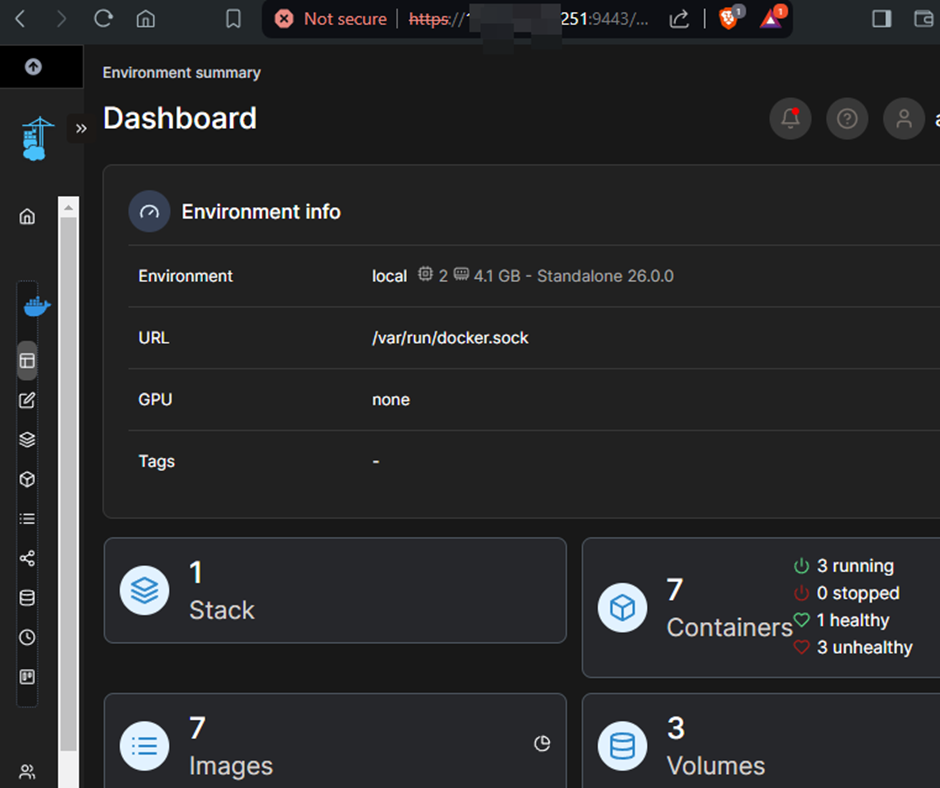

  • Adding Portainer.io
  • Creating 3 instance of Docker container
  • Deploying dockers using shell script

Disclaimer

Table Of contents

  • Deploying Azure VM using Terraform and Adding monitoring using cAdvisor
  • References:
  • Error resolution
  • Step 01 : Install Terraform on windows
  • Step 02 : Install Azure CLI on Windows
  • Step 03 : Install VS code
  • Step 04: Using Terraform creating VM
  • Step 04.1:  versions.tf
  • Step 04.2: vm.tf
    • Creating with Private IP address only
    • Now to get the latest linux vm version use the following command
    • Now initiating connection
    • Checking configuration success without any error to Terraform
    • Now Applying the changes to terraform to Azure
  • Step 04.3 : Now to create : public IP address
    • Updating the changes in the terraform to Azure.
  • Step 04.4: All set getting in to Azure VM
  • Step 05: Now trying to perform Port tutorial with Dashboard with cAdvisor
  • Step 05.1 :This is a simple Docker image : Hello World

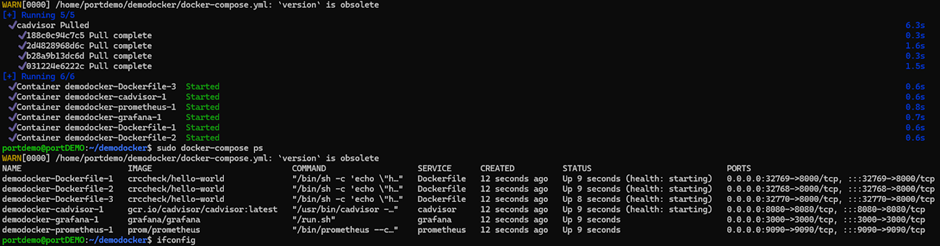

    • Step 05.2 : Creating shell script to automate the deployment of docker image: Hello world
    • Step 05.3 : Creating shell script to automate the deployment of docker image and dashboard monitoring images
    • Providing executing permissions

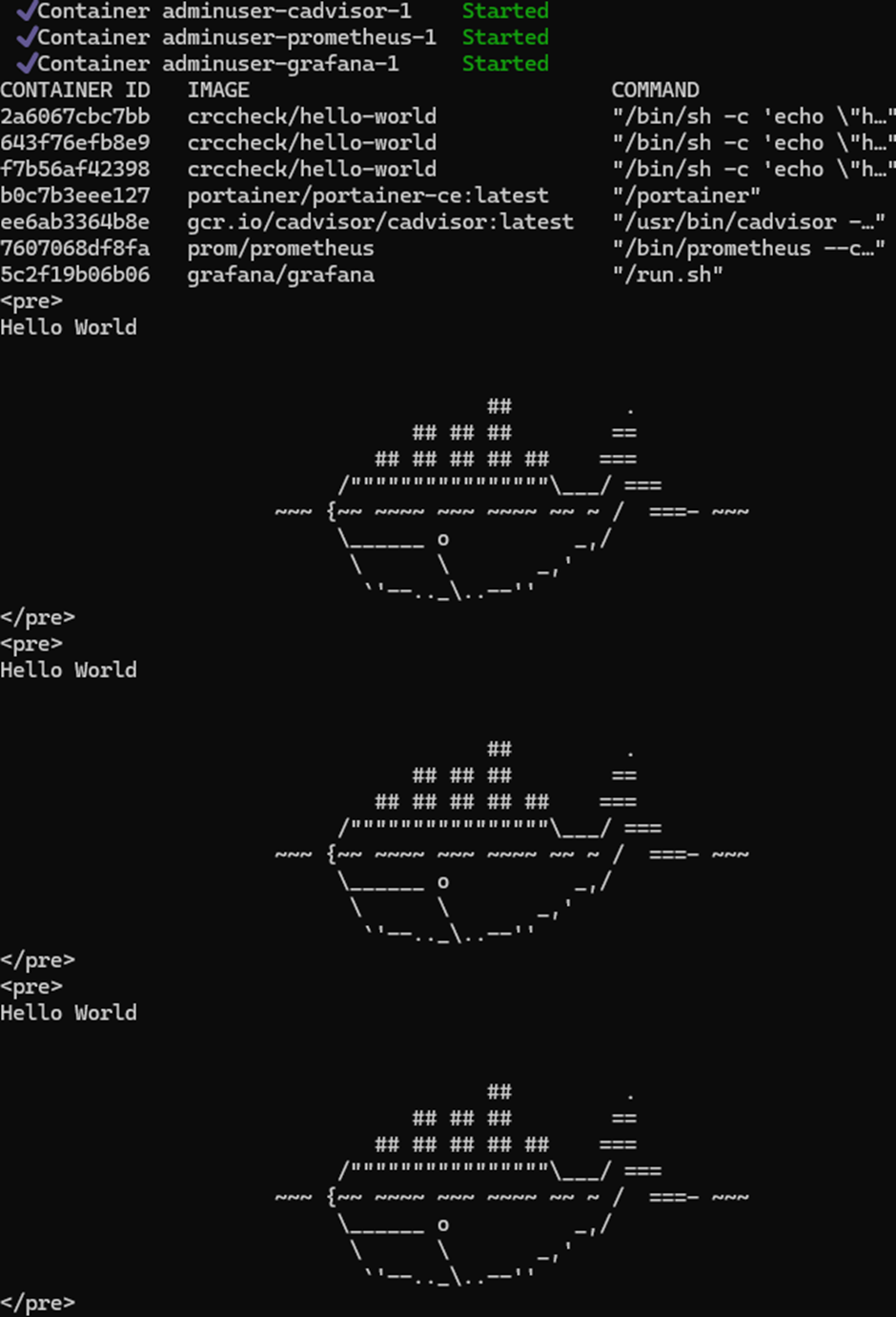

    • Final Output: Expected :
  • Step 06: Creating Load Balancer
    • Step 06.1: Adding NAT inbound rules to enable the ip address
    • Step 06.2: Connecting to a VM and deploying the docker script file.
  • Step 07: Adding Inbound Rules to VM layer
  • Final Output Expected:
    • cAdvisor : Demo Docker-cadvisor-1
    • Demo Docker-prometheus-1 : http://132.18.679.965:9090
    • Demo Docker-grafana-1 : http://132.18.679.965:3000/login

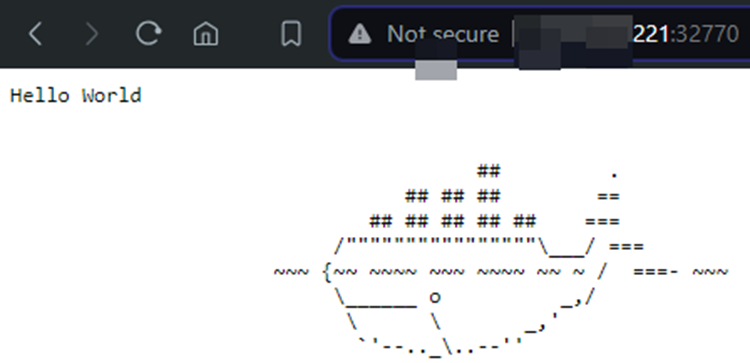

    • Docker instance 1 demo docker-Dockerfile-1 : http://132.18.679.965:32768/
    • Docker instance 2 demo docker-Dockerfile-2 : http://132.18.679.965:32769/
    • Docker instance 3 demo docker-Dockerfile-3 : http://132.18.679.965:32770/
  • Appendix Version 1
    • Demo Docker-cadvisor-1 : http://132.18.679.965:8080/containers/

************************************************************************************************

References:

  • Terraform Tutorial | How to Create an AZURE VM with TERRAFORM | PUBLIC IP + PRIVATE IP
    • https://www.youtube.com/watch?v=T1WxrEwyyKU
  • Azure Infrastructure with Terraform - Lab - Azure Load Balancer
    • https://www.youtube.com/watch?v=SpSJZmaGvFk
  • https://registry.terraform.io/providers/hashicorp/azurerm/latest
  • https://medium.com/@sohammohite/docker-container-monitoring-with-cadvisor-prometheus-and-grafana-using-docker-compose-b47ec78efbc
  • https://medium.com/@varunjain2108/monitoring-docker-containers-with-cadvisor-prometheus-and-grafana-d101b4dbbc84
  • https://github.com/crccheck/docker-hello-world
  • https://medium.com/@tomer.klein/step-by-step-tutorial-installing-docker-and-docker-compose-on-ubuntu-a98a1b7aaed0
  • https://webhostinggeeks.com/howto/how-to-uninstall-docker-on-ubuntu/
  • https://learn.microsoft.com/en-us/cli/azure/install-azure-cli-windows?tabs=azure-cli
  • https://webdock.io/en/docs/how-guides/docker-guides/how-to-install-and-run-docker-containers-using-docker-compose
  • https://terraformguru.com/terraform-real-world-on-azure-cloud/14-Azure-Standard-LoadBalancer-Basic/
  • https://registry.terraform.io/providers/hashicorp/azurerm/latest/docs/resources/network_security_group

Error resolution:

  • grafana_grafana_1 exited with code 1
    • You need to add both UID (user ID) and GID (group ID)
    • https://community.grafana.com/t/new-docker-install-with-persistent-storage-permission-problem/10896/13
  • | exec /usr/bin/cadvisor: exec format error
    • https://github.com/google/cadvisor/issues/2564
    • You most probably have a CPU architecture mismatch - cAdvisor image aimed at arch X (ex. amd64), but running on host with arch Y (ex. arm).
  • publicipaddressinuse resource /frontend-ip is referencing public ip address that is already allocated to resource ipconfigurations/internal
    • Not to declare public ip separately while using Load balancer with front end ip.
  • Azure vm Cannot create more than 3 public IP addresses for this subscription in this region
    • Disassociate other public ip addresses in azure and then delete them.
************************************************************************************************

Github.com

https://github.com/gouti1454/DevOps-demo

************************************************************************************************

Step 01 : Install Terraform on windows


PS C:\Users\G> choco install terraform
PS C:\Users\G> terraform -help


Step 02 : Install Azure CLI on Windows

https://learn.microsoft.com/en-us/cli/azure/install-azure-cli-windows?tabs=azure-cli

  • Creating Azure account on the web, to connect from desktop

  • PS C:\Users\G> az version
  • PS C:\Users\G> az login
  • PS C:\Users\G> az -help
  • PS C:\Users\G> az account list


Step 03 : Install VS code

https://code.visualstudio.com/download

https://registry.terraform.io/providers/hashicorp/azurerm/latest/docs/resources/linux_virtual_machine

Step 04: Using Terraform creating VM

Step 04.1:  versions.tf

  • Search in the below link
  • https://registry.terraform.io/providers/hashicorp/azurerm/latest
  • Click on user provider and copy the code to version.tf

//************//

terraform {
  required_providers {
    azurerm = {
      source = "hashicorp/azurerm"
      version = "3.97.1"
    }
  }
}

provider "azurerm" {
  features {}
}
//************//

Step 04.2: vm.tf

  • Creating with Private IP address only
  • Click on the documentation
  • https://registry.terraform.io/providers/hashicorp/azurerm/latest
  • Search for virtual machine , select - azurerm linux virtuaL MACHINE

  • Copy the content in to the file vm.tf

//************vm.tf******//
resource "azurerm_resource_group" "example" {
  name     = "example-resources"
  location = "UK South"
}

resource "azurerm_virtual_network" "example" {
  name                = "example-network"
  address_space       = ["10.0.0.0/16"]
  location            = azurerm_resource_group.example.location
  resource_group_name = azurerm_resource_group.example.name
}

resource "azurerm_subnet" "example" {
  name                 = "internal"
  resource_group_name  = azurerm_resource_group.example.name
  virtual_network_name = azurerm_virtual_network.example.name
  address_prefixes     = ["10.0.2.0/24"]
}
resource "azurerm_network_interface" "example" {
  name                = "example-nic"
  location            = azurerm_resource_group.example.location
  resource_group_name = azurerm_resource_group.example.name

  ip_configuration {
    name                          = "internal"
    subnet_id                     = azurerm_subnet.example.id
    private_ip_address_allocation = "Dynamic"
    public_ip_address_id          = azurerm_public_ip.example.id
  }
}

resource "azurerm_linux_virtual_machine" "example" {
  name                = "example-machine"
  resource_group_name = azurerm_resource_group.example.name
  location            = azurerm_resource_group.example.location
  size                = "Standard_F2"
  admin_username      = "adminuser"
  network_interface_ids = [
    azurerm_network_interface.example.id,
  ]

  admin_ssh_key {
    username   = "adminuser"
    public_key = file("vm.pub")
  }

  os_disk {
    caching              = "ReadWrite"
    storage_account_type = "Standard_LRS"
  }

  source_image_reference {
    publisher = "Canonical"
    offer     = "0001-com-ubuntu-server-jammy"
    sku       = "22_04-lts"
    version   = "latest"
  }
}
//******end*****//

  • Now generating ssh-key pair and giving the file name as vm
  • PS C:\Users\G> ssh-keygen
Generating public/private rsa key pair.
Enter file in which to save the key (C:\Users\G/.ssh/id_rsa): vm
Enter passphrase (empty for no passphrase):
Enter same passphrase again:
Your identification has been saved in vm
Your public key has been saved in vm.pub

Now to get the latest linux vm version use the following command

PS C:\Users\Gouti1454_PC> az vm image list

Now initiating connection

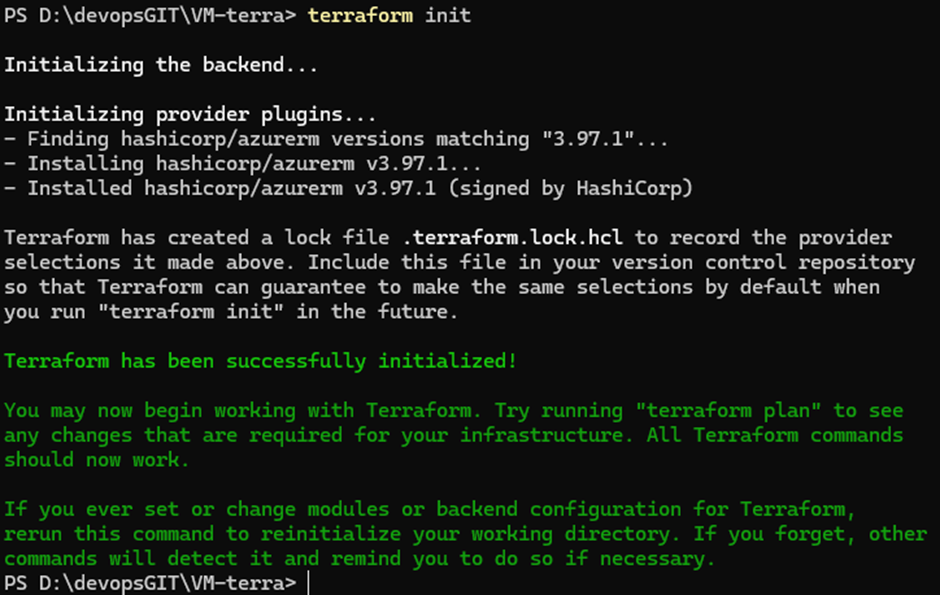

PS D:\devopsGIT\VM-terra> terraform init


terraform init
terraform init






Checking configuration success without any error to Terraform


  • PS D:\devopsGIT\VM-terra> terraform.exe plan
Plan: 5 to add, 0 to change, 0 to destroy.

─────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────

Note: You didn't use the -out option to save this plan, so Terraform can't guarantee to take exactly these actions if you run "terraform
apply" now.


Now Applying the changes to terraform to Azure

  • PS D:\devopsGIT\VM-terra> Terraform apply



Terraform apply



Step 04.3 : Now to create : public IP address

  • Searching for : public ip
https://registry.terraform.io/providers/hashicorp/azurerm/latest/docs/resources/public_ip

//***********//
resource "azurerm_public_ip" "example" {
  name                = "acceptanceTestPublicIp1"
  resource_group_name = azurerm_resource_group.example.name
  location            = azurerm_resource_group.example.location
  allocation_method   = "Static"

  tags = {
    environment = "Production"
  }
}
//***********//

  • Now updating the vm.tf
//****version 2*********//
resource "azurerm_resource_group" "example" {
  name     = "example-resources"
  location = "UK South"
}

resource "azurerm_virtual_network" "example" {
  name                = "example-network"
  address_space       = ["10.0.0.0/16"]
  location            = azurerm_resource_group.example.location
  resource_group_name = azurerm_resource_group.example.name
}

resource "azurerm_subnet" "example" {
  name                 = "internal"
  resource_group_name  = azurerm_resource_group.example.name
  virtual_network_name = azurerm_virtual_network.example.name
  address_prefixes     = ["10.0.2.0/24"]
}
resource "azurerm_public_ip" "example" {
  name                = "vmpublicip01"
  resource_group_name = azurerm_resource_group.example.name
  location            = azurerm_resource_group.example.location
  allocation_method   = "Static"

  tags = {
    environment = "Production"
  }
}
resource "azurerm_network_interface" "example" {
  name                = "example-nic"
  location            = azurerm_resource_group.example.location
  resource_group_name = azurerm_resource_group.example.name

  ip_configuration {
    name                          = "internal"
    subnet_id                     = azurerm_subnet.example.id
    private_ip_address_allocation = "Dynamic"
    public_ip_address_id          = azurerm_public_ip.example.id
  }
}

resource "azurerm_linux_virtual_machine" "example" {
  name                = "example-machine"
  resource_group_name = azurerm_resource_group.example.name
  location            = azurerm_resource_group.example.location
  size                = "Standard_F2"
  admin_username      = "adminuser"
  network_interface_ids = [
    azurerm_network_interface.example.id,
  ]

  admin_ssh_key {
    username   = "adminuser"
    public_key = file("vm.pub")
  }

  os_disk {
    caching              = "ReadWrite"
    storage_account_type = "Standard_LRS"
  }

  source_image_reference {
    publisher = "Canonical"
    offer     = "0001-com-ubuntu-server-jammy"
    sku       = "22_04-lts"
    version   = "latest"
  }
}

//****END********//

  • Adding the above code under
add public IP



  • Then adding the variable public key
public_ip_address_id          = azurerm_public_ip.example.id

Public IP




Updating the changes in the terraform to Azure.

  • PS D:\devopsGIT\VM-terra> terraform fmt
versionms.tf
vm.tf
  • PS D:\devopsGIT\VM-terra> terraform.exe apply

Apply complete! Resources: 1 added, 1 changed, 0 destroyed.

Step 04.4: All set getting in to Azure VM

  • While using the private key, need to do the following changed on the private key downloaded

  • Demokey.prem -> right click->
    • properties->security->advanced->
      • disable inheritance->remove other users other than admin.

  • Copy the private key “vm” & “vm.pub” in same folder as other files “D:\devopsGIT\VM-terra”
  • Open Terminal as admin

PS D:\devopsGIT\VM-terra> ssh -i vm adminuser@178.0.0.1

adminuser@example-machine:~$

Result Able to get into VM using SSH


************************************************************************************************

Step 05: Now trying to perform Port tutorial with Dashboard with cAdvisor

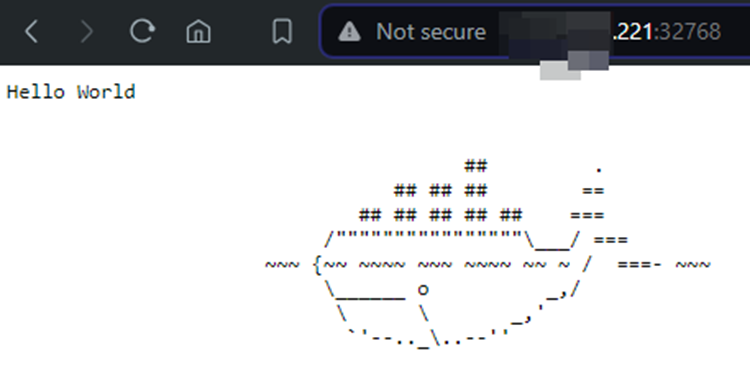

Step 05.1 :This is a simple Docker image : Hello World


  • docker pull chuckwired/port-tutorial
  • adminuser@example-machine:~$ sudo docker run -d -p 8081:8000 chuckwired/port-tutorial /usr/bin/nodejs /home/hello-world/app.js

Unable to find image 'chuckwired/port-tutorial:latest' locally

latest: Pulling from chuckwired/port-tutorial
docker: [DEPRECATION NOTICE] Docker Image Format v1 and Docker Image manifest version 2, schema 1 support is disabled by default and will be removed in an upcoming release. Suggest the author of docker.io/chuckwired/port-tutorial:latest to upgrade the image to the OCI Format or Docker Image manifest v2, schema 2. More information at https://docs.docker.com/go/deprecated-image-specs/.
See 'docker run --help'.

Since the Docker image : "'chuckwired/port-tutorial" has been deprecated, using another latest version as below.

  • Use the following link to obtain
  • https://github.com/crccheck/docker-hello-world
  • Testing the docker image manually

    • sudo docker run -d --rm --name 01web-test -p 8079:8000 crccheck/hello-world
    • sudo  docker run -d --rm --name 02web-test -p 8089:8000 crccheck/hello-world
    • sudo  docker run -d --rm --name 03web-test -p 8099:8000 crccheck/hello-world

Step 05.2 : Creating shell script to automate the deployment of docker image: Hello world


  • azureuser@DemoLinux:~/dockerfile$ sudo cat docscript.sh

//****version 1 *********//
#!/bin/bash
# Set the image name and version
IMAGE_NAME="my-app-02"
IMAGE_VERSION="2.0"

# Create a new directory for the Dockerfile and build context
#mkdir -p ${IMAGE_NAME}-${IMAGE_VERSION}
#cd ${IMAGE_NAME}-${IMAGE_VERSION}

# Create a new Dockerfile
cat << EOF > Dockerfile
FROM busybox:latest
ENV PORT=8000
LABEL maintainer="Chris <c@crccheck.com>"

# EXPOSE $PORT

HEALTHCHECK CMD nc -z localhost $PORT

# Create a basic webserver and run it until the container is stopped
CMD echo "httpd started" && trap "exit 0;" TERM INT; httpd -v -p $PORT -h /www -f & wait
EOF
# Build the Docker image
docker build -t ${IMAGE_NAME}:${IMAGE_VERSION} .

# Run the Docker image
#docker run -p 8079:8000 -d ${IMAGE_NAME}:${IMAGE_VERSION} crccheck/hello-world
sudo docker run -d --rm --name 01web-test -p 8079:8000 crccheck/hello-world
sudo docker run -d --rm --name 02web-test -p 8089:8000 crccheck/hello-world
sudo docker run -d --rm --name 03web-test -p 8099:8000 crccheck/hello-world
//****END********//

  • azureuser@DemoLinux:~/dockerfile$ sudo docker ps
docker ps
docker ps




Step 05.3 : Creating shell script to automate the deployment of docker image and dashboard monitoring images

  • sudo nano docscript.sh
  • portdemo@portDEMO:~/demodocker$ sudo cat docscript.sh

//****version 8 *********//
#!/bin/bash

#version 8
#sudo docker volume prune
#sudo docker container prune
#sudo rmdir prometheus.yml
#sudo rm Dockerfile
#sudo rm docker-compose.yml

sudo apt update
sudo apt upgrade -y

sudo apt install -y ca-certificates curl gnupg lsb-release
sudo mkdir -p /etc/apt/keyrings
sudo curl -fsSL https://download.docker.com/linux/ubuntu/gpg | sudo gpg --dearmor -o /etc/apt/keyrings/docker.gpg
sudo echo  "deb [arch=$(dpkg --print-architecture) signed-by=/etc/apt/keyrings/docker.gpg] https://download.docker.com/linux/ubuntu  $(lsb_release -cs) stable" | sudo tee /etc/apt/sources.list.d/docker.list > /dev/null

sudo apt update

sudo apt install -y docker-ce docker-ce-cli containerd.io docker-compose-plugin
#checking docker status
sudo docker run hello-world

sudo apt install docker -y
sudo systemctl restart docker && sudo systemctl enable docker

sudo curl -L https://github.com/docker/compose/releases/latest/download/docker-compose-$(uname -s)-$(uname -m) -o /usr/local/bin/docker-compose
sudo chmod +x /usr/local/bin/docker-compose
sudo ln -s /usr/local/bin/docker-compose /usr/bin/docker-compose

# Set the image name and version
IMAGE_NAME="my-app-02"
IMAGE_VERSION="2.0"


# Create a new Dockerfile
cat << EOF > Dockerfile
FROM busybox:latest
ENV PORT=8000
LABEL maintainer="Chris <c@crccheck.com>"


# EXPOSE $PORT

HEALTHCHECK CMD nc -z localhost $PORT

# Create a basic webserver and run it until the container is stopped
CMD echo "httpd started" && trap "exit 0;" TERM INT; httpd -v -p $PORT -h /www -f & wait
EOF


# Build the Docker image
docker build -t ${IMAGE_NAME}:${IMAGE_VERSION} .

# Run the Docker image

cat <<EOF >/home/adminuser/docker-compose.yml
version: '3.9'
services:
  cadvisor:
      image: gcr.io/cadvisor/cadvisor:latest
      hostname: cadvisor
      volumes:
        - "/:/rootfs:ro"
        - "/var/run:/var/run:ro"
        - "/sys:/sys:ro"
        - "/var/lib/docker/:/var/lib/docker:ro"
        - "/dev/disk/:/dev/disk:ro"
      ports:
        - "8080:8080"

  prometheus:
    image: prom/prometheus
    volumes:
      - ./prometheus.yml:/etc/prometheus/prometheus-scrape-config.yaml
    ports:
      - "9090:9090"

  grafana:
    image: grafana/grafana
    user: "$UID:$GID"
    volumes:
      - ./data/grafana:/var/lib/grafana
    ports:
      - "3000:3000"

  Dockerfile:
    image: crccheck/hello-world
    deploy:
      mode: replicated
      replicas: 3
    ports:
      - 8000
    healthcheck:
      test: curl --fail http://localhost || exit 1
      interval: 10s
      timeout: 3s
      retries: 3
#health check starting healthy unhealthy is displayed against the status under docker ps

EOF
chown adminuser:adminuser /home/adminuser/docker-compose.yml
sudo /usr/local/bin/docker-compose -f  /home/adminuser/docker-compose.yml up -d
#// creating  portainer.io for GUI dashboard
sudo docker volume create portainer_data
sudo docker run -d -p 8000:8000 -p 9443:9443 --name portainer --restart=always -v /var/run/docker.sock:/var/run/docker.sock -v portainer_data:/data portainer/portainer-ce:latest
#sudo docker-compose ps
sudo docker ps
sudo curl ifconfig.me
//****END********//

  • portdemo@portDEMO:~/demodocker$

Providing executing permissions

  • sudo chmod +x docscript.sh
  • sudo ./docscript.sh
  • sudo docker-compose ps

Output: Expected :

  • portdemo@portDEMO:~/demodocker$ sudo docker-compose ps
WARN[0000] /home/portdemo/demodocker/docker-compose.yml: `version` is obsolete
NAME                      IMAGE                             COMMAND                   SERVICE      CREATED          STATUS                            PORTS
demodocker-Dockerfile-1   crccheck/hello-world              "/bin/sh -c 'echo \"h…"   Dockerfile   12 seconds ago   Up 9 seconds (health: starting)   0.0.0.0:32769->8000/tcp, :::32769->8000/tcp

demodocker-Dockerfile-2   crccheck/hello-world              "/bin/sh -c 'echo \"h…"   Dockerfile   12 seconds ago   Up 9 seconds (health: starting)   0.0.0.0:32768->8000/tcp, :::32768->8000/tcp

demodocker-Dockerfile-3   crccheck/hello-world              "/bin/sh -c 'echo \"h…"   Dockerfile   12 seconds ago   Up 8 seconds (health: starting)   0.0.0.0:32770->8000/tcp, :::32770->8000/tcp

demodocker-cadvisor-1     gcr.io/cadvisor/cadvisor:latest   "/usr/bin/cadvisor -…"    cadvisor     12 seconds ago   Up 9 seconds (health: starting)   0.0.0.0:8080->8080/tcp, :::8080->8080/tcp

demodocker-grafana-1      grafana/grafana                   "/run.sh"                 grafana      12 seconds ago   Up 9 seconds                      0.0.0.0:3000->3000/tcp, :::3000->3000/tcp

demodocker-prometheus-1   prom/prometheus                   "/bin/prometheus --c…"    prometheus   12 seconds ago   Up 9 seconds                      0.0.0.0:9090->9090/tcp, :::9090->9090/tcp

Output docscript.sh
Output docscript.sh


Output after adding portainer.io
  • adminuser@example-machine:~$ sudo docker ps

docker ps
docker ps


Portainer.io : Dashboard showing Health status


Portainer.io Health status
Portainer.io Health status


Health Check for the three containers:

Trying to get health check in Docker compose file.
 Dockerfile:
    image: crccheck/hello-world
    deploy:
      mode: replicated
      replicas: 3
    ports:
      - 8000
    healthcheck:
      test: ["CMD", "curl", "-f", "http://localhost"]
      interval: 10s
      timeout: 3s
      retries: 3


EOF
chown adminuser:adminuser /home/adminuser/docker-compose.yml
sudo /usr/local/bin/docker-compose -f  /home/adminuser/docker-compose.yml up -d
#// creating  porttainer for GUI dashboard
#sudo docker volume create portainer_data
#sudo docker run -d -p 8000:8000 -p 9443:9443 --name portainer --restart=always -v /var/run/docker.sock:/var/run/docker.sock -v portainer_data:/data portainer/portainer-ce:latest
#sudo docker-compose ps
sudo docker ps
#Health check
sudo curl -f http://localhost:32768
sudo curl -f http://localhost:32769
sudo curl -f http://localhost:32770


Curl Health Check
Curl Health Check


health: starting
health: starting


health: healthy / unhealthy
health: healthy / unhealthy




**********************************************************************************************


Step 06: Creating Load Balancer


  • Adding Load Balancer Resource
Search : load balancer -> azurerm_lb

now updating the Vm.tf with code.
  • Adding Backend Pool Address For Load Balancer
  • Adding Lb-Backend-Address-Pool-Address
  • Adding Health Lb-Probe Load Balancer Probe Resource
  • Adding Lb-Rule Load Balancer Rule.
  • Next: The NAT rules are added using the format list in the link:

    •  azurerm_lb_nat_rule: https://registry.terraform.io/providers/hashicorp/azurerm/latest/docs/resources/lb

  • The Virtual Machine can be connected using the Frontend IP.
    • the connecting is enough to pull images and updates
    • where as the open internet access is denied in basic NAT network outbound rule.
    • In these NAT rules : Target VM, N/w IP to has to be included.



Version 7 will  create the inbound rules in the load balance alone.

  • There must be another inbound rules for the VM to all the connection from the load balance IP address to the VM IP address ports.
  • The version 8 : addresses to add inbound rules to VM layer.


//**** vm.tf **** version 7*********//
resource "azurerm_resource_group" "aparito" {
  name     = "aparito-resources"
  location = "UK South"
}
//Virtual n/w
resource "azurerm_virtual_network" "app_network" {
  name                = "app-network"
  address_space       = ["10.0.0.0/16"]
  location            = azurerm_resource_group.aparito.location
  resource_group_name = azurerm_resource_group.aparito.name
}
//subnet
resource "azurerm_subnet" "SubnetA" {
  name                 = "internal"
  resource_group_name  = azurerm_resource_group.aparito.name
  virtual_network_name = azurerm_virtual_network.app_network.name
  address_prefixes     = ["10.0.2.0/24"]
}
//declaring public ip name
resource "azurerm_public_ip" "load_ip" {
  name                = "load_ip"
  resource_group_name = azurerm_resource_group.aparito.name
  location            = azurerm_resource_group.aparito.location
  allocation_method   = "Static"
  sku                 = "Standard"
  tags = {
    environment = "Production"
  }
}
// declaring private ip and  commenting the public address since adding front end ip address
resource "azurerm_network_interface" "Nic_inter" {
  name                = "example-nic"
  location            = azurerm_resource_group.aparito.location
  resource_group_name = azurerm_resource_group.aparito.name

  ip_configuration {
    name                          = "internal"
    subnet_id                     = azurerm_subnet.SubnetA.id
    private_ip_address_allocation = "Dynamic"
    //public_ip_address_id          = azurerm_public_ip.load_ip.id
  }
  depends_on = [
    azurerm_virtual_network.app_network,
    azurerm_subnet.SubnetA
  ]
}
// declaring load balancer
resource "azurerm_lb" "app_balancer" {
  name                = "app_balancer"
  location            = azurerm_resource_group.aparito.location
  resource_group_name = azurerm_resource_group.aparito.name

  frontend_ip_configuration {
    name                 = "frontend-ip"
    public_ip_address_id = azurerm_public_ip.load_ip.id
  }
  sku        = "Standard"
  depends_on = [azurerm_public_ip.load_ip]
}
//adding backend pool address name
resource "azurerm_lb_backend_address_pool" "PoolA" {
  loadbalancer_id = azurerm_lb.app_balancer.id
  name            = "PoolA"

  depends_on = [
    azurerm_lb.app_balancer
  ]
}
// adding lb-backend-address-pool : ip address
resource "azurerm_lb_backend_address_pool_address" "appvm1_address" {
  name                    = "appvm1"
  backend_address_pool_id = azurerm_lb_backend_address_pool.PoolA.id
  virtual_network_id      = azurerm_virtual_network.app_network.id
  //ip_address              = "10.0.1.1"
  ip_address = azurerm_network_interface.Nic_inter.private_ip_address
  depends_on = [
    azurerm_lb_backend_address_pool.PoolA
  ]
}
//ADDING health lb-probe
resource "azurerm_lb_probe" "ProbeA" {
  loadbalancer_id = azurerm_lb.app_balancer.id
  name            = "ProbeA"
  port            = 80
  depends_on = [
    azurerm_lb.app_balancer
  ]
}
//adding lb-rule
resource "azurerm_lb_rule" "RuleA" {
  loadbalancer_id                = azurerm_lb.app_balancer.id
  name                           = "RuleA"
  protocol                       = "Tcp"
  frontend_port                  = 80
  backend_port                   = 80
  frontend_ip_configuration_name = "frontend-ip"
  backend_address_pool_ids       = [azurerm_lb_backend_address_pool.PoolA.id]
  probe_id                       = azurerm_lb_probe.ProbeA.id
  depends_on = [
    azurerm_lb.app_balancer,
    azurerm_lb_probe.ProbeA
  ]
}


//virtual machine example-machine
resource "azurerm_linux_virtual_machine" "example-machine" {
  name                = "example-machine"
  resource_group_name = azurerm_resource_group.aparito.name
  location            = azurerm_resource_group.aparito.location
  size                = "Standard_F2"
  admin_username      = "adminuser"
  network_interface_ids = [
    azurerm_network_interface.Nic_inter.id,
  ]

  admin_ssh_key {
    username   = "adminuser"
    public_key = file("vm.pub")
  }

  os_disk {
    caching              = "ReadWrite"
    storage_account_type = "Standard_LRS"
  }

  source_image_reference {
    publisher = "Canonical"
    offer     = "0001-com-ubuntu-server-jammy"
    sku       = "22_04-lts"
    version   = "latest"
  }
}


//# Adding NAT rules for the ssh22 port

resource "azurerm_lb_nat_rule" "inbound_rule_22" {
  resource_group_name            = azurerm_resource_group.aparito.name
  loadbalancer_id                = azurerm_lb.app_balancer.id
  name                           = "inbound-rule-22"
  protocol                       = "Tcp"
  frontend_port_start            = 22
  frontend_port_end              = 22
  backend_port                   = 22
  backend_address_pool_id        = azurerm_lb_backend_address_pool.PoolA.id
  frontend_ip_configuration_name = "frontend-ip"
  enable_floating_ip             = false

  depends_on = [
    azurerm_lb.app_balancer,
    azurerm_linux_virtual_machine.example-machine
  ]
}

//# Adding more NAT rules for other ports
//NAT rule for  cadvisor 8080
resource "azurerm_lb_nat_rule" "inbound_rule_8080" {
  resource_group_name            = azurerm_resource_group.aparito.name
  loadbalancer_id                = azurerm_lb.app_balancer.id
  name                           = "inbound-rule-8080"
  protocol                       = "Tcp"
  frontend_port_start            = 8080
  frontend_port_end              = 8080
  backend_port                   = 8080
  frontend_ip_configuration_name = "frontend-ip"
  backend_address_pool_id        = azurerm_lb_backend_address_pool.PoolA.id

  enable_floating_ip = false

  depends_on = [
    azurerm_lb.app_balancer,
    azurerm_linux_virtual_machine.example-machine
  ]
}

//NAT rule for  prometheus 9090
resource "azurerm_lb_nat_rule" "inbound_rule_9090" {
  resource_group_name            = azurerm_resource_group.aparito.name
  loadbalancer_id                = azurerm_lb.app_balancer.id
  name                           = "inbound-rule-9090"
  protocol                       = "Tcp"
  frontend_port_start            = 9090
  frontend_port_end              = 9090
  backend_port                   = 9090
  frontend_ip_configuration_name = "frontend-ip"
  backend_address_pool_id        = azurerm_lb_backend_address_pool.PoolA.id

  enable_floating_ip = false

  depends_on = [
    azurerm_lb.app_balancer,
    azurerm_linux_virtual_machine.example-machine
  ]
}

//NAT rule for Docker 8000
resource "azurerm_lb_nat_rule" "inbound_rule_8000" {
  resource_group_name            = azurerm_resource_group.aparito.name
  loadbalancer_id                = azurerm_lb.app_balancer.id
  name                           = "inbound-rule-8000"
  protocol                       = "Tcp"
  frontend_port_start            = 8000
  frontend_port_end              = 8000
  backend_port                   = 8000
  frontend_ip_configuration_name = "frontend-ip"
  backend_address_pool_id        = azurerm_lb_backend_address_pool.PoolA.id

  enable_floating_ip = false

  depends_on = [
    azurerm_lb.app_balancer,
    azurerm_linux_virtual_machine.example-machine
  ]
}


//NAT rule for Docker instance1
resource "azurerm_lb_nat_rule" "inbound_rule_32770" {
  resource_group_name            = azurerm_resource_group.aparito.name
  loadbalancer_id                = azurerm_lb.app_balancer.id
  name                           = "inbound-rule-32770"
  protocol                       = "Tcp"
  frontend_port_start            = 32770
  frontend_port_end              = 32770
  backend_port                   = 32770
  frontend_ip_configuration_name = "frontend-ip"
  backend_address_pool_id        = azurerm_lb_backend_address_pool.PoolA.id
  enable_floating_ip             = false

  depends_on = [
    azurerm_lb.app_balancer,
    azurerm_linux_virtual_machine.example-machine
  ]
}

//NAT rule for Docker instance2
resource "azurerm_lb_nat_rule" "inbound_rule_32771" {
  resource_group_name            = azurerm_resource_group.aparito.name
  loadbalancer_id                = azurerm_lb.app_balancer.id
  name                           = "inbound-rule-32771"
  protocol                       = "Tcp"
  frontend_port_start            = 32771
  frontend_port_end              = 32771
  backend_port                   = 32771
  frontend_ip_configuration_name = "frontend-ip"
  backend_address_pool_id        = azurerm_lb_backend_address_pool.PoolA.id
  enable_floating_ip             = false

  depends_on = [
    azurerm_lb.app_balancer,
    azurerm_linux_virtual_machine.example-machine
  ]
}

//NAT rule for Docker instance2
resource "azurerm_lb_nat_rule" "inbound_rule_32772" {
  resource_group_name            = azurerm_resource_group.aparito.name
  loadbalancer_id                = azurerm_lb.app_balancer.id
  name                           = "inbound-rule-32772"
  protocol                       = "Tcp"
  frontend_port_start            = 32772
  frontend_port_end              = 32772
  backend_port                   = 32772
  frontend_ip_configuration_name = "frontend-ip"
  backend_address_pool_id        = azurerm_lb_backend_address_pool.PoolA.id
  enable_floating_ip             = false

  depends_on = [
    azurerm_lb.app_balancer,
    azurerm_linux_virtual_machine.example-machine
  ]
}
//****END********//

Step 06.1: Adding NAT inbound rules in Load Balancer to enable the IP address

Adding NAT rules manually


Inbound NAT rule: load balancer
Load balancer: inbound NAT rules

Adding Through Terraform : Depends on Load balancer name


# Adding more NAT rules for the other ports
resource "azurerm_lb_nat_rule" "inbound_rule_9090" {
  resource_group_name            = azurerm_resource_group.aparito.name
  loadbalancer_id                = azurerm_lb.app_balancer.id
  name                           = "inbound-rule-9090"
  protocol                       = "Tcp"
  frontend_port                  = 9090
  backend_port                   = 9090
  frontend_ip_configuration_name = "frontend-ip"
  enable_floating_ip            = false
  depends_on = [
    azurerm_lb.app_balancer
  ]
}

with load balancer
with load balancer



Adding through Terraform : load balance name and Virtual machine ID


resource "azurerm_lb_nat_rule" "inbound_rule_9090" {
  resource_group_name            = azurerm_resource_group.aparito.name
  loadbalancer_id                = azurerm_lb.app_balancer.id
  name                           = "inbound-rule-9090"
  protocol                       = "Tcp"
  frontend_port_start            = 9090
  frontend_port_end              = 9090
  backend_port                   = 9090
  backend_address_pool_id       = azurerm_lb_backend_address_pool.PoolA.id
  enable_floating_ip             = false

  depends_on = [
    azurerm_lb.app_balancer,
    azurerm_linux_virtual_machine.example-machine
  ]
}

NAT rule mapped to Backend Pool
NAT rule mapped to Backend Pool



Step 06.2: Connecting to a VM and deploying the docker script file.

where there is no public IP address, using frontend IP address and port mapping connecting to the VM as below.

PS C:\Users\G> ssh -i "C:\Users\G\exampledemo.pem" adminuser@98.123.67.221 -p 22

  • adminuser@example-machine:~$ sudo nano docscript.sh
  • adminuser@example-machine:~$ sudo chmod +x docscript.sh
  • adminuser@example-machine:~$ sudo ./docscript.sh
  • adminuser@example-machine:~$ sudo docker-compose ps

connecting VM
Connecting VM



Azure Dashboard
Azure Dashboard


Step 07: Adding Inbound Rules to VM layer

The inbound rules for the VM allows the ports from the Load Balancer public IP address to SSH connection.


Security Inbound rule for VM
Security Inbound rule for VM




//**** vm.tf **** version 8 *********//
resource "azurerm_resource_group" "aparito" {
  name     = "aparito-resources"
  location = "UK South"
}
//Virtual n/w
resource "azurerm_virtual_network" "app_network" {
  name                = "app-network"
  address_space       = ["10.0.0.0/16"]
  location            = azurerm_resource_group.aparito.location
  resource_group_name = azurerm_resource_group.aparito.name
}
//subnet
resource "azurerm_subnet" "SubnetA" {
  name                 = "internal"
  resource_group_name  = azurerm_resource_group.aparito.name
  virtual_network_name = azurerm_virtual_network.app_network.name
  address_prefixes     = ["10.0.2.0/24"]
}



//declaring public ip name
resource "azurerm_public_ip" "load_ip" {
  name                = "load_ip"
  resource_group_name = azurerm_resource_group.aparito.name
  location            = azurerm_resource_group.aparito.location
  allocation_method   = "Static"
  sku                 = "Standard"
  tags = {
    environment = "Production"
  }
}

// declaring private ip and  commenting the public address since adding front end ip address
resource "azurerm_network_interface" "Nic_inter" {
  name                = "example-nic"
  location            = azurerm_resource_group.aparito.location
  resource_group_name = azurerm_resource_group.aparito.name

  ip_configuration {
    name                          = "internal"
    subnet_id                     = azurerm_subnet.SubnetA.id
    private_ip_address_allocation = "Dynamic"
    //public_ip_address_id          = azurerm_public_ip.load_ip.id
  }
  depends_on = [
    azurerm_virtual_network.app_network,
    azurerm_subnet.SubnetA
  ]
}



// declaring load balancer
resource "azurerm_lb" "app_balancer" {
  name                = "app_balancer"
  location            = azurerm_resource_group.aparito.location
  resource_group_name = azurerm_resource_group.aparito.name

  frontend_ip_configuration {
    name                 = "frontend-ip"
    public_ip_address_id = azurerm_public_ip.load_ip.id
  }
  sku        = "Standard"
  depends_on = [azurerm_public_ip.load_ip]
}
//adding backend pool address name
resource "azurerm_lb_backend_address_pool" "PoolA" {
  loadbalancer_id = azurerm_lb.app_balancer.id
  name            = "PoolA"

  depends_on = [
    azurerm_lb.app_balancer
  ]
}
// adding lb-backend-address-pool : ip address
resource "azurerm_lb_backend_address_pool_address" "appvm1_address" {
  name                    = "appvm1"
  backend_address_pool_id = azurerm_lb_backend_address_pool.PoolA.id
  virtual_network_id      = azurerm_virtual_network.app_network.id
  //ip_address              = "10.0.1.1"
  ip_address = azurerm_network_interface.Nic_inter.private_ip_address
  depends_on = [
    azurerm_lb_backend_address_pool.PoolA
  ]
}
//ADDING health lb-probe
resource "azurerm_lb_probe" "ProbeA" {
  loadbalancer_id = azurerm_lb.app_balancer.id
  name            = "ProbeA"
  port            = 80
  depends_on = [
    azurerm_lb.app_balancer
  ]
}
//adding lb-rule
resource "azurerm_lb_rule" "RuleA" {
  loadbalancer_id                = azurerm_lb.app_balancer.id
  name                           = "RuleA"
  protocol                       = "Tcp"
  frontend_port                  = 80
  backend_port                   = 80
  frontend_ip_configuration_name = "frontend-ip"
  backend_address_pool_ids       = [azurerm_lb_backend_address_pool.PoolA.id]
  probe_id                       = azurerm_lb_probe.ProbeA.id
  depends_on = [
    azurerm_lb.app_balancer,
    azurerm_lb_probe.ProbeA
  ]
}


//virtual machine example-machine
resource "azurerm_linux_virtual_machine" "example-machine" {
  name                = "example-machine"
  resource_group_name = azurerm_resource_group.aparito.name
  location            = azurerm_resource_group.aparito.location
  size                = "Standard_F2"
  admin_username      = "adminuser"
  network_interface_ids = [
    azurerm_network_interface.Nic_inter.id,
  ]

  admin_ssh_key {
    username   = "adminuser"
    public_key = file("vm.pub")
  }

  os_disk {
    caching              = "ReadWrite"
    storage_account_type = "Standard_LRS"
  }

  source_image_reference {
    publisher = "Canonical"
    offer     = "0001-com-ubuntu-server-jammy"
    sku       = "22_04-lts"
    version   = "latest"
  }
}

//Starting NAT inbound rules for the LoadBalancer
//# Adding NAT rules for the load balancer and mapping backend pool: ssh22 port

resource "azurerm_lb_nat_rule" "inbound_rule_22" {
  resource_group_name            = azurerm_resource_group.aparito.name
  loadbalancer_id                = azurerm_lb.app_balancer.id
  name                           = "inbound-rule-22"
  protocol                       = "Tcp"
  frontend_port_start            = 22
  frontend_port_end              = 22
  backend_port                   = 22
  backend_address_pool_id        = azurerm_lb_backend_address_pool.PoolA.id
  frontend_ip_configuration_name = "frontend-ip"
  enable_floating_ip             = false

  depends_on = [
    azurerm_lb.app_balancer,
    azurerm_linux_virtual_machine.example-machine
  ]
}



//# Adding more NAT rules : for the  load balancer and mapping backend pool::  for other ports
//NAT rule for  cadvisor 8080


resource "azurerm_lb_nat_rule" "inbound_rule_8080" {
  resource_group_name            = azurerm_resource_group.aparito.name
  loadbalancer_id                = azurerm_lb.app_balancer.id
  name                           = "inbound-rule-8080"
  protocol                       = "Tcp"
  frontend_port_start            = 8080
  frontend_port_end              = 8080
  backend_port                   = 8080
  frontend_ip_configuration_name = "frontend-ip"
  backend_address_pool_id        = azurerm_lb_backend_address_pool.PoolA.id

  enable_floating_ip = false

  depends_on = [
    azurerm_lb.app_balancer,
    azurerm_linux_virtual_machine.example-machine
  ]
}


//NAT rule for  prometheus 9090
resource "azurerm_lb_nat_rule" "inbound_rule_9090" {
  resource_group_name            = azurerm_resource_group.aparito.name
  loadbalancer_id                = azurerm_lb.app_balancer.id
  name                           = "inbound-rule-9090"
  protocol                       = "Tcp"
  frontend_port_start            = 9090
  frontend_port_end              = 9090
  backend_port                   = 9090
  frontend_ip_configuration_name = "frontend-ip"
  backend_address_pool_id        = azurerm_lb_backend_address_pool.PoolA.id

  enable_floating_ip = false

  depends_on = [
    azurerm_lb.app_balancer,
    azurerm_linux_virtual_machine.example-machine
  ]
}

//NAT rule for Docker 8000
resource "azurerm_lb_nat_rule" "inbound_rule_8000" {
  resource_group_name            = azurerm_resource_group.aparito.name
  loadbalancer_id                = azurerm_lb.app_balancer.id
  name                           = "inbound-rule-8000"
  protocol                       = "Tcp"
  frontend_port_start            = 8000
  frontend_port_end              = 8000
  backend_port                   = 8000
  frontend_ip_configuration_name = "frontend-ip"
  backend_address_pool_id        = azurerm_lb_backend_address_pool.PoolA.id

  enable_floating_ip = false

  depends_on = [
    azurerm_lb.app_balancer,
    azurerm_linux_virtual_machine.example-machine
  ]
}


//NAT rule for Docker instance1
resource "azurerm_lb_nat_rule" "inbound_rule_32770" {
  resource_group_name            = azurerm_resource_group.aparito.name
  loadbalancer_id                = azurerm_lb.app_balancer.id
  name                           = "inbound-rule-32770"
  protocol                       = "Tcp"
  frontend_port_start            = 32770
  frontend_port_end              = 32770
  backend_port                   = 32770
  frontend_ip_configuration_name = "frontend-ip"
  backend_address_pool_id        = azurerm_lb_backend_address_pool.PoolA.id
  enable_floating_ip             = false

  depends_on = [
    azurerm_lb.app_balancer,
    azurerm_linux_virtual_machine.example-machine
  ]
}

//NAT rule for Docker instance2
resource "azurerm_lb_nat_rule" "inbound_rule_32771" {
  resource_group_name            = azurerm_resource_group.aparito.name
  loadbalancer_id                = azurerm_lb.app_balancer.id
  name                           = "inbound-rule-32771"
  protocol                       = "Tcp"
  frontend_port_start            = 32771
  frontend_port_end              = 32771
  backend_port                   = 32771
  frontend_ip_configuration_name = "frontend-ip"
  backend_address_pool_id        = azurerm_lb_backend_address_pool.PoolA.id
  enable_floating_ip             = false

  depends_on = [
    azurerm_lb.app_balancer,
    azurerm_linux_virtual_machine.example-machine
  ]
}

//NAT rule for Docker instance2
resource "azurerm_lb_nat_rule" "inbound_rule_32772" {
  resource_group_name            = azurerm_resource_group.aparito.name
  loadbalancer_id                = azurerm_lb.app_balancer.id
  name                           = "inbound-rule-32772"
  protocol                       = "Tcp"
  frontend_port_start            = 32772
  frontend_port_end              = 32772
  backend_port                   = 32772
  frontend_ip_configuration_name = "frontend-ip"
  backend_address_pool_id        = azurerm_lb_backend_address_pool.PoolA.id
  enable_floating_ip             = false

  depends_on = [
    azurerm_lb.app_balancer,
    azurerm_linux_virtual_machine.example-machine
  ]
}

//Ending NAT inbound rules for the LoadBalancer

// Adding the Inbound rules for VM layer.
//adding nsg group :: Network security group example-nsg-1 (attached to subnet: internal)
resource "azurerm_network_security_group" "NSG-example" {
  name                = "example-nsg-1"
  location            = azurerm_resource_group.aparito.location
  resource_group_name = azurerm_resource_group.aparito.name

  security_rule {
    name                       = "portssh"
    priority                   = 100
    direction                  = "Inbound"
    access                     = "Allow"
    protocol                   = "Tcp"
    source_port_range          = "*"
    destination_port_range     = "22"
    source_address_prefix      = "*"
    destination_address_prefix = "*"
  }

  security_rule {
    name                       = "port3000"
    priority                   = 110
    direction                  = "Inbound"
    access                     = "Allow"
    protocol                   = "Tcp"
    source_port_range          = "*"
    destination_port_range     = "3000"
    source_address_prefix      = "*"
    destination_address_prefix = "*"
  }

  security_rule {
    name                       = "port8000"
    priority                   = 120
    direction                  = "Inbound"
    access                     = "Allow"
    protocol                   = "Tcp"
    source_port_range          = "*"
    destination_port_range     = "8000"
    source_address_prefix      = "*"
    destination_address_prefix = "*"
  }

  security_rule {
    name                       = "port9090"
    priority                   = 130
    direction                  = "Inbound"
    access                     = "Allow"
    protocol                   = "Tcp"
    source_port_range          = "*"
    destination_port_range     = "9090"
    source_address_prefix      = "*"
    destination_address_prefix = "*"
  }

  security_rule {
    name                       = "port8080"
    priority                   = 140
    direction                  = "Inbound"
    access                     = "Allow"
    protocol                   = "Tcp"
    source_port_range          = "*"
    destination_port_range     = "8080"
    source_address_prefix      = "*"
    destination_address_prefix = "*"
  }

    security_rule {
    name                       = "port9443"
    priority                   = 150
    direction                  = "Inbound"
    access                     = "Allow"
    protocol                   = "Tcp"
    source_port_range          = "*"
    destination_port_range     = "9443"
    source_address_prefix      = "*"
    destination_address_prefix = "*"
  }

  security_rule {
    name                       = "port32770"
    priority                   = 160
    direction                  = "Inbound"
    access                     = "Allow"
    protocol                   = "Tcp"
    source_port_range          = "*"
    destination_port_range     = "32770"
    source_address_prefix      = "*"
    destination_address_prefix = "*"
  }

  security_rule {
    name                       = "port32769"
    priority                   = 170
    direction                  = "Inbound"
    access                     = "Allow"
    protocol                   = "Tcp"
    source_port_range          = "*"
    destination_port_range     = "32769"
    source_address_prefix      = "*"
    destination_address_prefix = "*"
  }

  security_rule {
    name                       = "port32768"
    priority                   = 180
    direction                  = "Inbound"
    access                     = "Allow"
    protocol                   = "Tcp"
    source_port_range          = "*"
    destination_port_range     = "32768"
    source_address_prefix      = "*"
    destination_address_prefix = "*"
  }

}

resource "azurerm_subnet_network_security_group_association" "NSG-subnet-example" {
  subnet_id                 = azurerm_subnet.SubnetA.id
  network_security_group_id = azurerm_network_security_group.NSG-example.id
}

// Ending nsg group : Network security group example-nsg-1 (attached to subnet: internal)

//adding nsg group associ with Network interface
resource "azurerm_network_interface_security_group_association" "NSG-NIC-example" {
  network_interface_id      = azurerm_network_interface.Nic_inter.id
  network_security_group_id = azurerm_network_security_group.NSG-example.id
}
//ending - nsg group associ with Network interface
// Ending the Inbound rules for VM layer.

//**** END*********//

Destroying VM

  • terraform destroy
  • terraform state list
  • terraform apply -destroy
  • terraform state rm -dry-run $(terraform state list)
  • terraform state rm  $(terraform state list)
  • terraform refresh

Final Out Put Expected


Azure-VM: with only Private address
Azure-VM: with only Private address


Portainer.io dashboard




cAdvisor : Demo Docker-cadvisor-1 : http://132.18.679.965:8080/containers/

cAdvisor
cAdvisor



Prometheus : Demo Docker-prometheus-1 : http://132.18.679.965:9090

Prometheus



Grafana : Demo Docker-grafana-1 : http://132.18.679.965:3000/login

Grafana
Grafana



Docker instance 1 =  http://132.18.679.965:32768/
Docker instance 1



Docker instance 2 = : http://132.18.679.965:32769/
Docker instance 2



Docker instance 3 :  : http://132.18.679.965:32770/

Docker instance 3




***********************************************************************************

Appendix Version 1

Demo Docker-cadvisor-1










************************************************************************************************
Search description
Deploying Azure VM using Terraform + Adding monitoring using cAdvisor, Prometheus, Grafana




















Comments

Popular Posts

Enable additional Security layer for Logging into: Google, Facebook and Twitter

Contacts of Helpline for: Child rescue, Food wastage, blood group

Privacy Settings for windows
